40ft Luxury Detachable Container House – 3 Bedroom Mobile Home with Kitchen & Toilet
Modular Comfort Meets Industrial Engineering
The 40ft Luxury Detachable Container House delivers a fully-integrated residential experience in a rugged, movable frame. Designed for fast deployment and comfort, this unit includes three bedrooms, a pre-installed kitchen, and a bathroom with dry/wet separation, all packed into a galvanized steel and sandwich panel shell.
This expandable modular house offers resistance to high wind, seismic activity, and fire, while supporting quick installation — completed by 4–5 people in just 10 minutes without crane assistance. Fully certified by RoHS and CE, this house conforms to EU and Australian safety standards.
Technical Specifications
Basic Dimensions
| Model |
External Dimensions (mm) |
Internal Dimensions (mm) |
Folded State (mm) |
Mass (kg) |
| 20FT |
W6300 × L5900 × H2480 |
W6140 × L5460 × H2240 |
W2200 × L5900 × H2480 |
2800 |
| 30FT |
W6220 × L9000 × H2480 |
W6060 × L8540 × H2240 |
W2200 × L9000 × H2480 |
3750 |
| 40FT |
W6220 × L11800 × H2480 |
W6060 × L11540 × H2200 |
W2200 × L11800 × H2480 |
4600 |
Core Structure and Materials
| Component |
Specification |
| Frame Material |
Galvanized steel structure |
| Panel System |
High-density sandwich panel |
| Flooring |
Wood floor with dampproof base |
| Windows |
High-quality aluminum framed window units |
| Doors |
Reinforced steel security entrance door |
Comfort-Driven Features

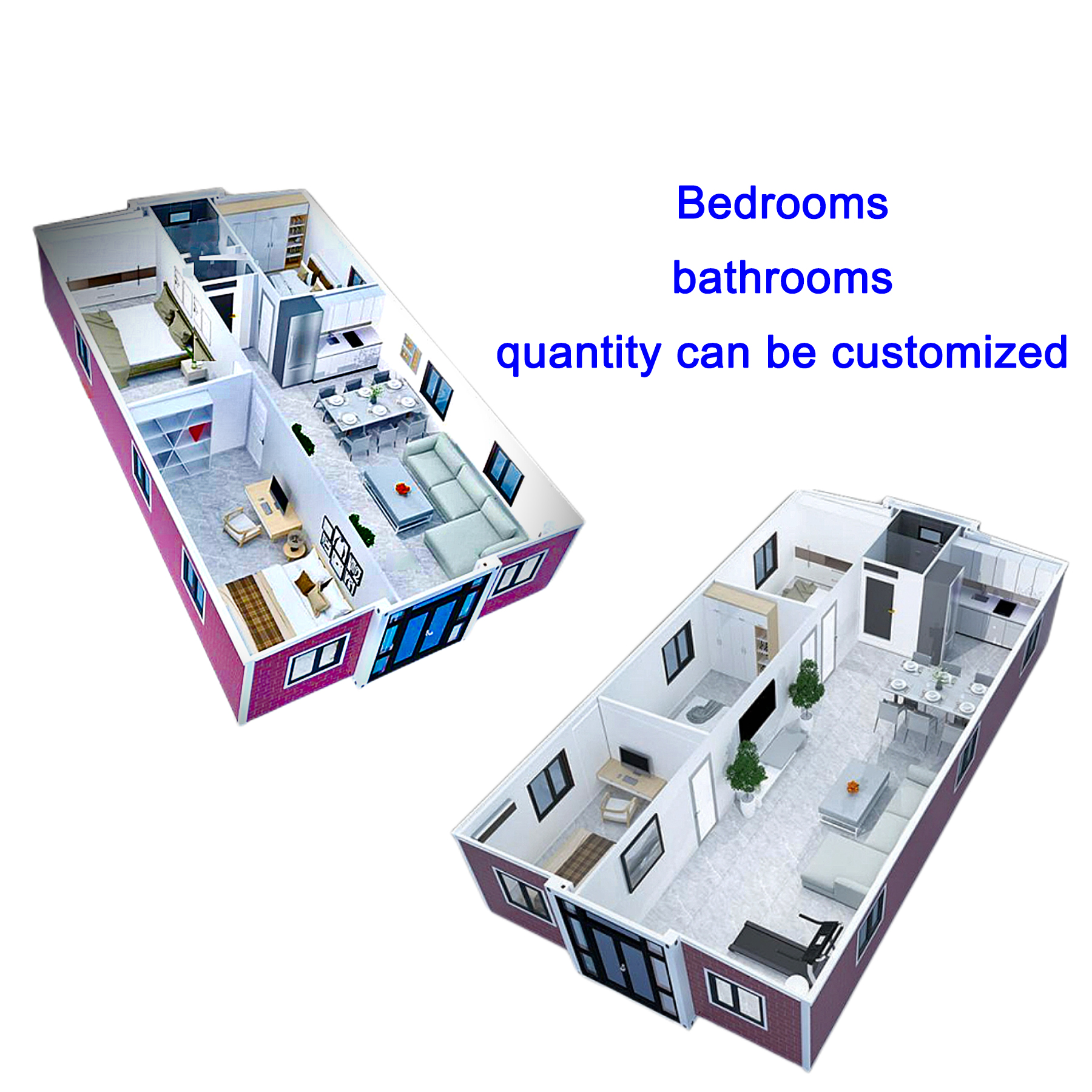

- Three private bedrooms with sound insulation

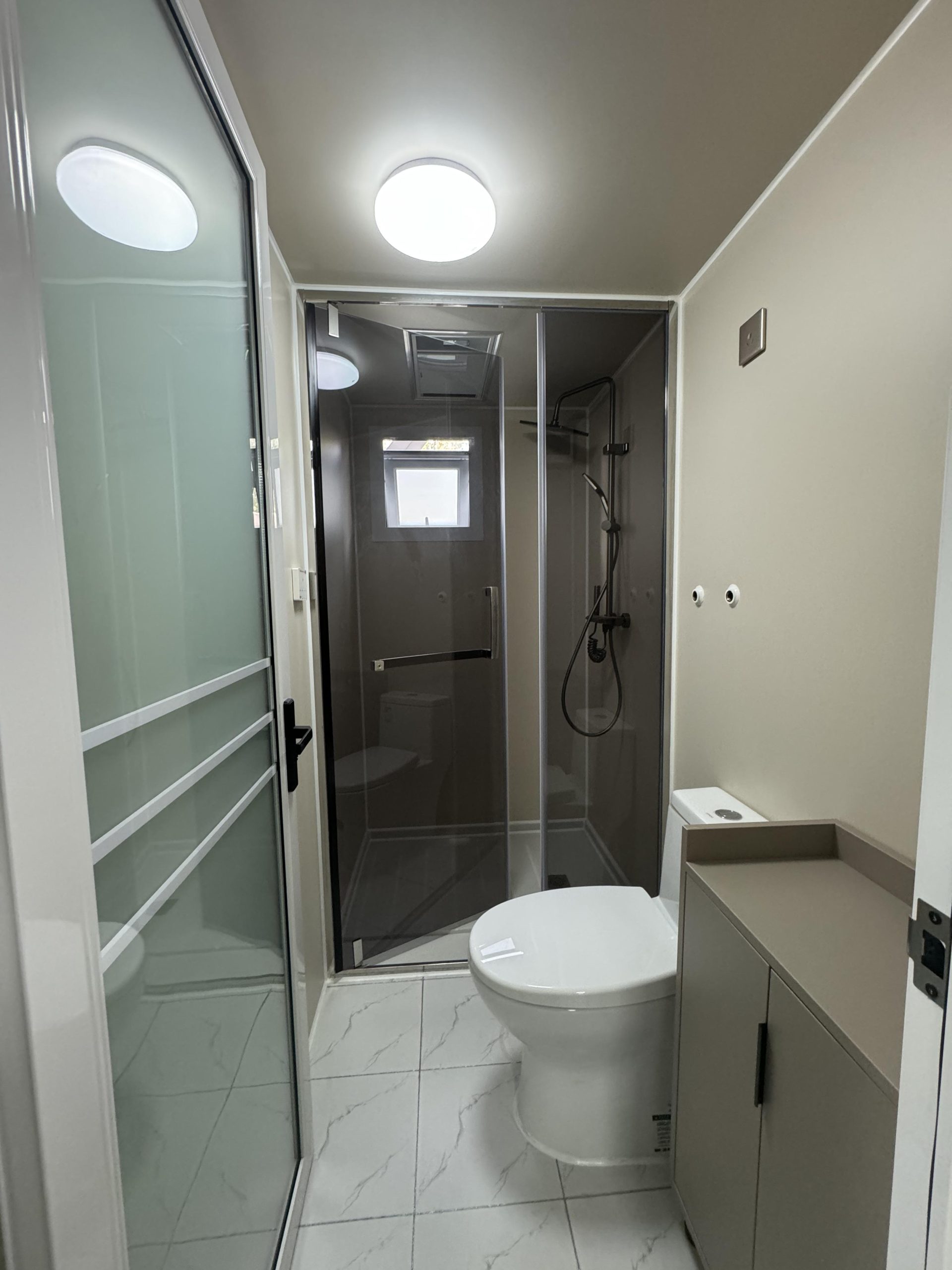

- Dry & wet separated bathroom with toilet and shower pre-installed
- Kitchen area fully pre-assembled in factory settings
- Expandable design folds into compact form for mobility
- Elegant modern interiors with customizable finish
- Smart layout options: office, dormitory, retail bar, villa, or emergency relief
Certifications & Compliance
| Certification |
Compliance Details |
| CE Certified |
Ensures EU safety and construction standards |
| RoHS Compliant |
Free from hazardous substances |
| Australian Standard |
Conforms to residential safety regulations |
Advantages at a Glance
- Fast Setup: 4–5 personnel install in 10 minutes—no crane required
- All-in-One Living: Kitchen and bathroom factory-installed
- Disaster-Ready: Fireproof, waterproof, rotproof, and earthquake-resistant
- Relocation-Friendly: Can be disassembled, transported, and reused
- Cost Efficient: Lower structural costs than traditional buildings
- Flexible Application: Suitable for homes, offices, dorms, bars, emergency housing
- Design Freedom: Choose your own layout, color, and finish
Installation & Support
| Installation Method |
Assembled on-site using basic hand tools |
| Support Available |
Online Technical Support |
| Warranty Coverage |
1-Year Manufacturer Warranty |
| Professional Guide |
Installation guide and schematics included |
Product Packaging Details
| Selling Unit |
Single container home module |
| Packaging Dimensions |
11800 mm × 2200 mm × 2400 mm |
| Gross Weight |
5120 kg |
