Expandable 3-Bedroom Prefab Container Villa

Expandable 3-Bedroom Prefab Container Villa – 40FT Modular Luxury Living

Secure, Elegant, and Fully Expandable for Modern Living

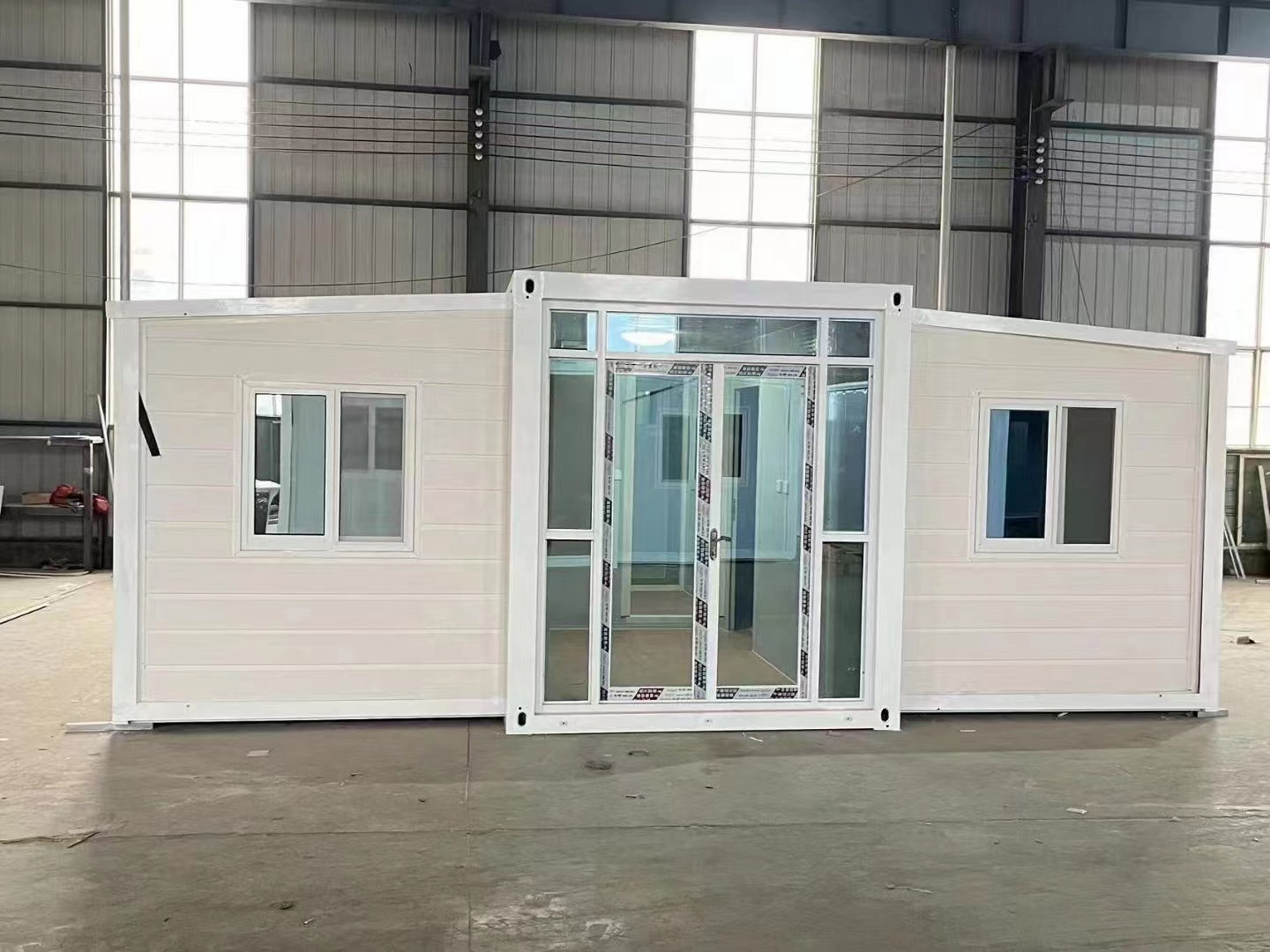

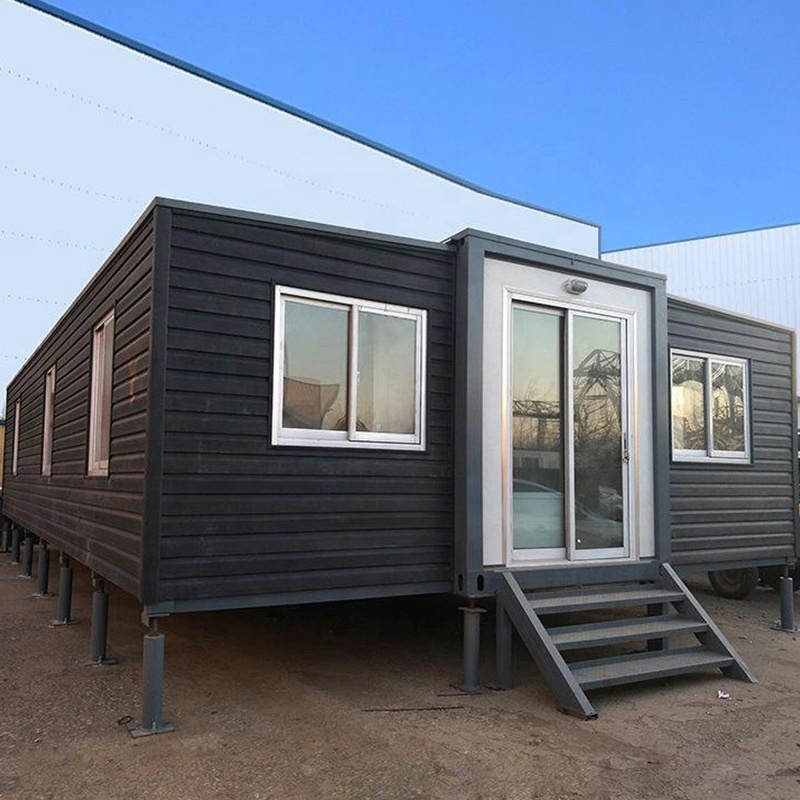

The Expandable 3-Bedroom Prefab Container Villa is a fully modular solution built for comfort, mobility, and durability. This 40FT expandable house unit features a modern architectural style, waterproof sandwich panel walls, and galvanized steel structural framing — offering long-term performance in various climates.

It comes pre-configured for residential, commercial, or hospitality use and includes CE and CCS certifications, confirming safety and regulatory compliance for construction and shipping applications.

Structural & Material Details

Component	Specification
External Dimensions (mm)	5900 × 6300 × 2480
Internal Dimensions (mm)	5460 × 6140 × 2240
Folded State (mm)	5900 × 2200 × 2480
Wall Thickness Options	50mm, 75mm, 100mm
Frame Material	Galvanized steel (2.5mm thickness)
Wall Material	High-insulation sandwich panels
Design Style	Contemporary, minimalistic
Warranty	5 years
After-Sale Service	Online technical support
Colors	Configurable on request

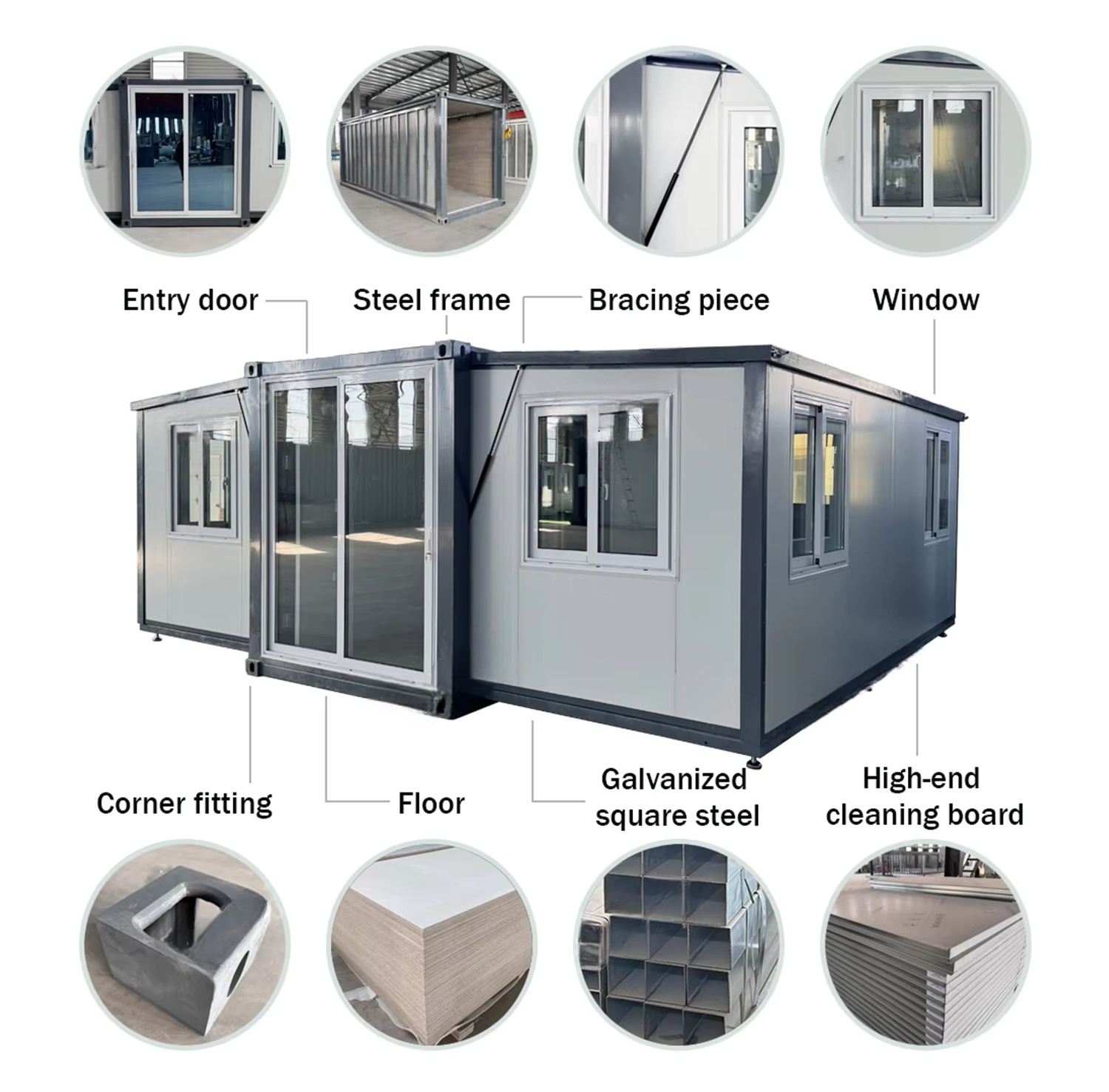

Frame Engineering Configuration

Frame Section	Material
Top Side Rail	80×100×2.5 mm galvanized square pipe
Top Beam	2.5 mm galvanized bending components
Top Longitudinal Secondary Beam	30×30×1.3 mm galvanized square pipe
Top Transverse Secondary Beam	40×60×1.5 mm galvanized square pipe
Bottom Side Beam	80×100×2.5 mm galvanized square pipe
Bottom End Beam	2.5 mm galvanized bent steel
Bottom Longitudinal Secondary Beam	40×80×1.5 mm galvanized square pipe
Bottom Transverse Secondary Beam	40×80×1.5 mm galvanized square pipe
Steel Column	2.5 mm galvanized bent steel
6mm Galvanized Hanger	L210 × W150 × H160 mm

Application Possibilities

Use Case	Functionality
Private Villas	Complete modular villas with bedrooms, kitchen, and bath
Hotels & Resorts	Expandable luxury units for off-grid lodges and tourist accommodation
Apartments	Stackable and scalable for community housing or micro-living apartments
Offices & Studios	Ideal for site offices, creative studios, or remote work cabins
Emergency Housing	Rapid-deploy shelters for disaster relief or resettlement

Certifications & Compliance

This prefab container villa complies with:

CE Certification – Ensures structural and environmental safety across the EU market
CCS Certification – Facilitates market access in global maritime and construction sectors

Built to withstand rain, wind, and corrosion, this unit is fully weatherproof and backed by structural testing before dispatch.

Technical Snapshot

Attribute	Specification
Product Name	Expandable Mobile House
Product Type	Container Houses
Shape	Rectangular (modular stackable)
Waterproof Rating	Yes
Design Style	Modern, minimalist
External Dimensions (mm)	5900 × 6300 × 2480
Internal Dimensions (mm)	5460 × 6140 × 2240
Folded State (mm)	5900 × 2200 × 2480
Gross Weight (kg)	2100
Packaging Size (cm)	605 × 243 × 259

Additional information

Size	20FT, 20FT HC, 40FT
