20FT Foldable Modular Container House – Hot Selling, Waterproof & Expandable

Optimized for Mobile Deployment and Modular Expansion

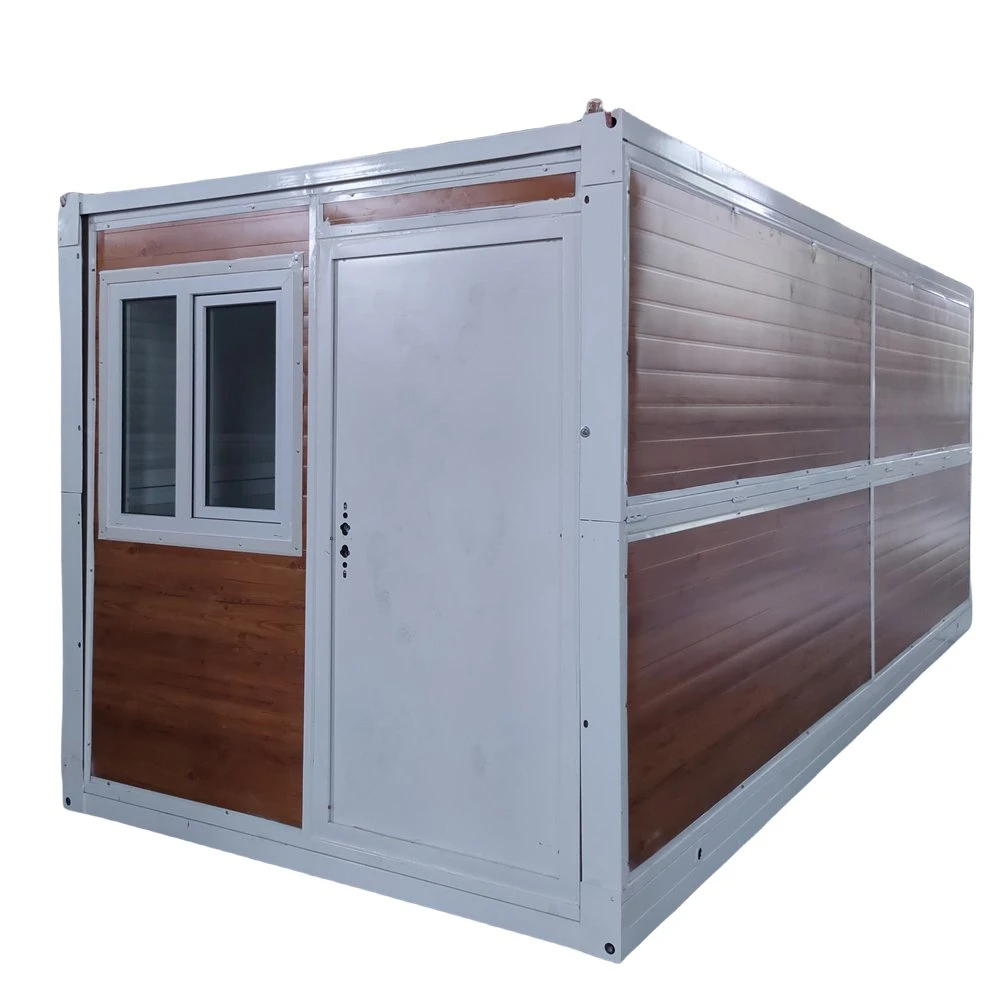

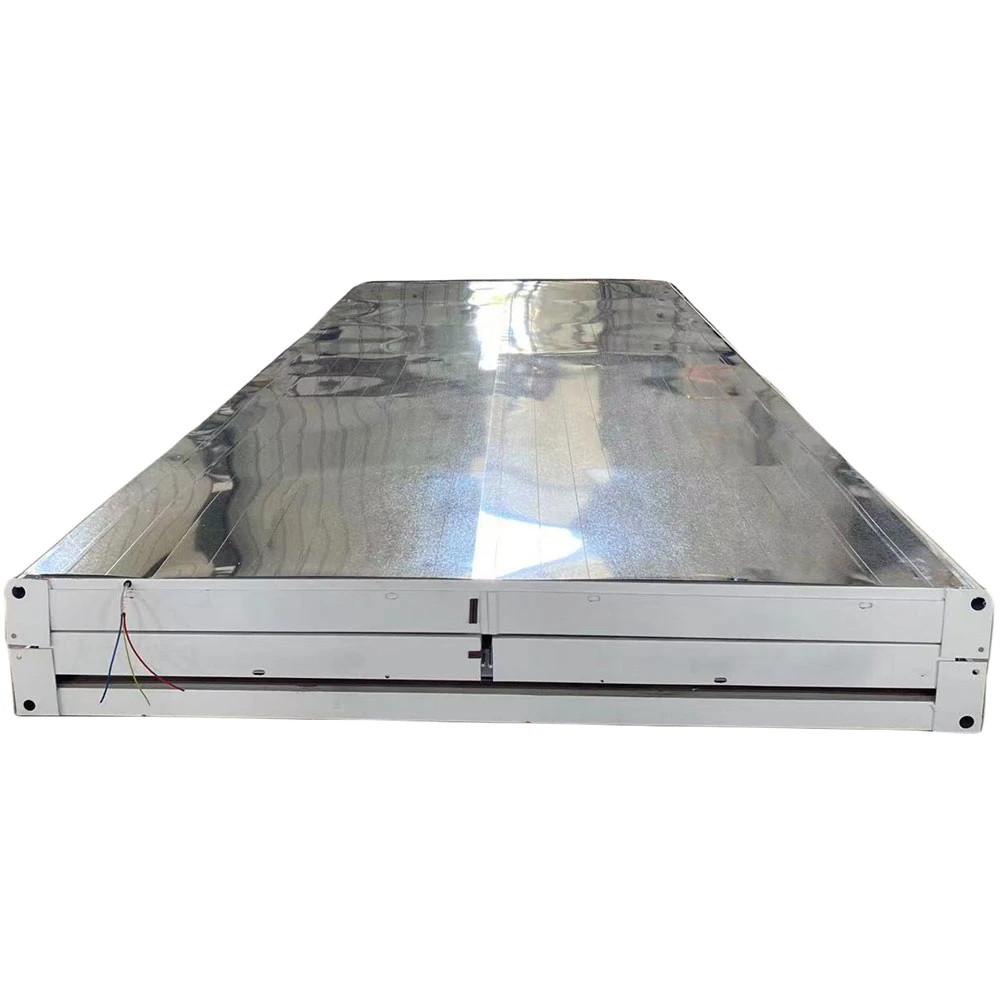

The 20FT Expandable Container House is engineered for rapid deployment, portability, and space efficiency. Built from robust steel and delivered in a foldable configuration, it supports on-site installation with minimal structural effort. Once deployed, it offers high thermal insulation, water resistance, and spatial flexibility for various end-uses — from temporary housing to commercial installations.

This model is widely used across Europe, Australia, and Japan, and can be fully customized to meet client-specific needs, including choice of color, windows, doors, flooring, and insulation thickness.


Core Features & Highlights

Feature Description
Structure Type Foldable mobile container house
Frame Material High-strength galvanized steel
Wall Thickness Options 50 mm, 75 mm, 100 mm
External Dimensions (L×W×H) 5900 mm × 2450 mm × 2570 mm
Packaging Dimensions 6100 mm × 2550 mm × 2670 mm
Gross Weight per Unit 2100 kg
Warranty 5 Years
After-Sale Support Online Technical Support
Design Customization Yes – layout, finishes, partitions, access points

Functionality & Modular Use Cases

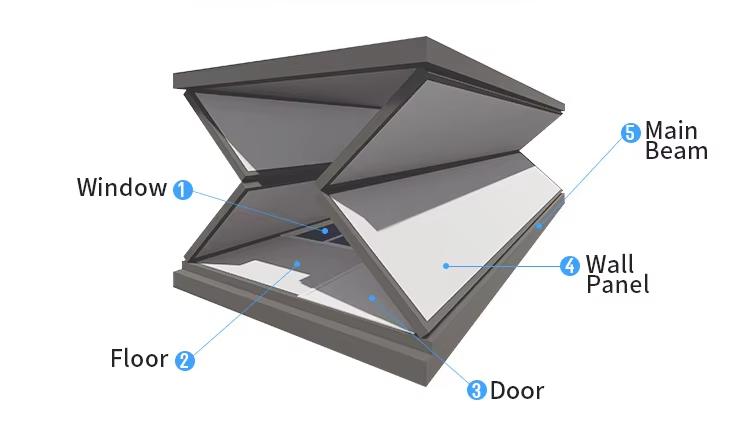

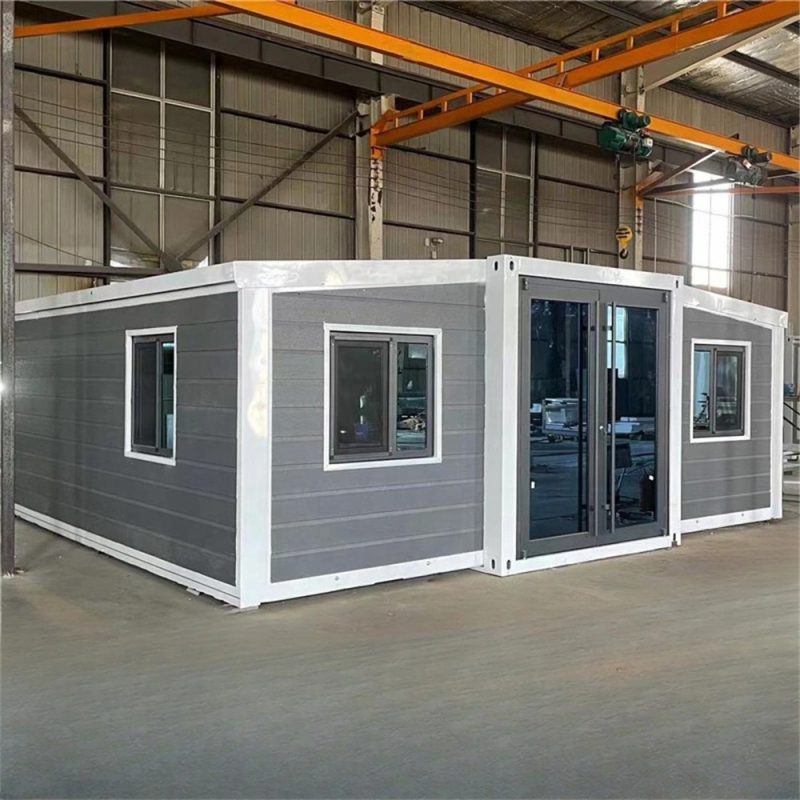

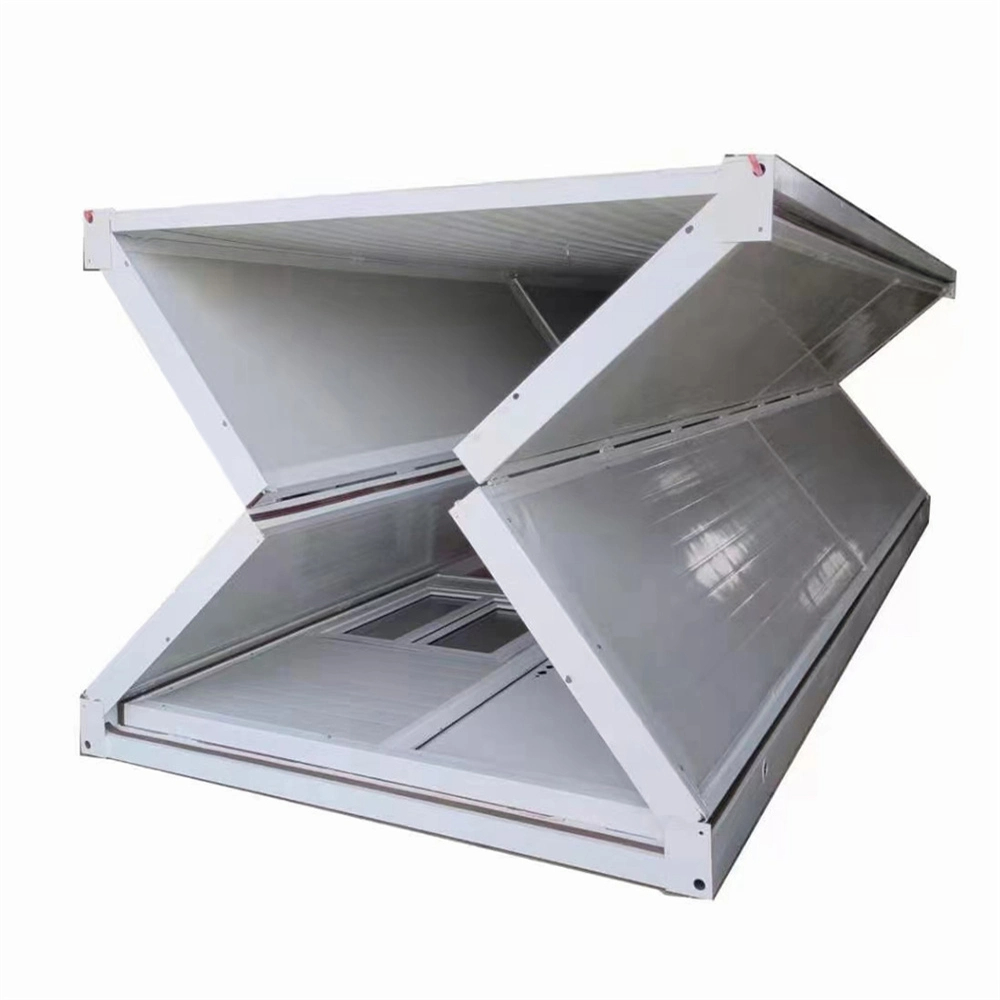

The folding design supports both horizontal and vertical combinations, enabling scale-up to larger units by joining multiple modules.

  • Living Quarters: Standard for remote field accommodations, dorms, villas
  • Commercial Applications: Cafés, restaurants, bars, showrooms, kindergartens
  • Institutional Use: Temporary offices, municipal resettlement units, guardhouses
  • Events & Exhibitions: Expandable back-of-house solutions or branded retail cubes
  • Storage: Dual-purpose deployment as secure, weatherproof storage space

Design & Insulation Engineering

Thermal & Structural Specs Performance Attributes
Insulation Material Sandwich panel (50 mm / 75 mm / 100 mm)
Resistance Capabilities Waterproof, heat insulated, and sound-insulated
Windows & Doors Configurable per order – framed for tight-seal integrity
Ventilation & Natural Light Custom placements available
Structural Joinery Pre-set anchor points for stacking and leveling
Deployment Efficiency Fast installation with fold-unfold mechanical simplicity

Customization & Expansion Flexibility

This prefab system is designed with modular standards, allowing clients to tailor the structure to exact project requirements:

  • Choose wall thickness based on thermal performance demands
  • Specify interior layouts for single-room or multi-zone purposes
  • Add utilities such as internal partitioning, plumbing setup, or AC support infrastructure
  • Integrate aesthetic finishes such as exterior RAL color coating or wood cladding

Who Uses This?

Sector Typical Use
Construction & Engineering Barracks, site offices, operations command units
Hospitality Mobile cafés, pop-up bars, outdoor dining areas
Real Estate & Leasing Temporary rental spaces, demonstration units
Government & NGOs Emergency shelters, relocation units
Schools & Education Portable classrooms, kindergartens
Events & Exhibitions Pop-up retail, ticket booths, on-site coordination
